A BETTER REMOTE FOR ANY CABLE OPERATED DROPPER

An Aluminum remote with an oversized bearing and a super smooth action. The unique lever position allows you to keep a stronger grip on the bars while actuating your post. Don't think twice about dropping your post, even when charging into technical sections. The OneUp lever mimics your R/H shifter’s inboard upshift paddle position instead of the usual downshift paddle position of most remotes. This position requires considerably less thumb movement to reach the lever.

NO BLEEDING

The cable setup is quick and easy. The cable clamps at the lever making shortening the housing length for clean routing a breeze. Unlike a hydraulically actuated dropper, there is no temperature sensitivity and If your remote gets damaged you can still lower or extend your post by removing it from your frame and pushing on the actuator by hand.

Kit includes cable and housing

Compatible with all cable actuated dropper posts.

Compatibility

22.2mm Bar Clamp - All other groups 10 speed Shimano
SRAM Matchmaker X - SRAM MMX clamps
Shimano I-spec-EV - 12 speed XTR M9100, XT M8100 and SLX M7100
Shimano I-spec II - 11 speed XTR M9000, XT M8000, SLX M7000 only

Weight:

Remote with 22.2mm Bar Clamp - 46g
Remote with SRAM Matchmaker X - 43g
Remote with Shimano I-spec-EV - 43g
Remote with Shimano I-spec II - 41g

INSTALL INSTRUCTIONS

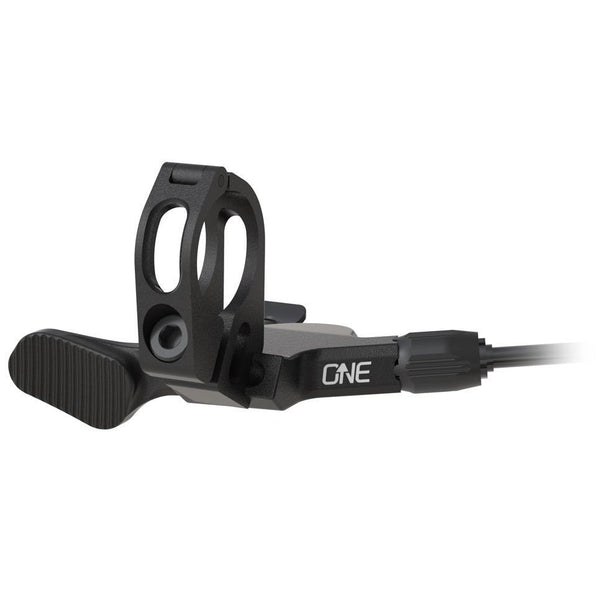

22.2mm Clamp

Loosely attach the hinged clamp to your handlebar (Left side of brake for SRAM, Right side of brake for Shimano)
Attach the remote body to the clamp using your preferred mounting hole.
Torque the remote body to the clamp using a 3mm hex to 3Nm
Loosen the 22.2mm clamp and rotate the OneUp dropper remote until the remote body is parallel to the brake lever
Snug the 22.2mm clamp to 1Nm max.

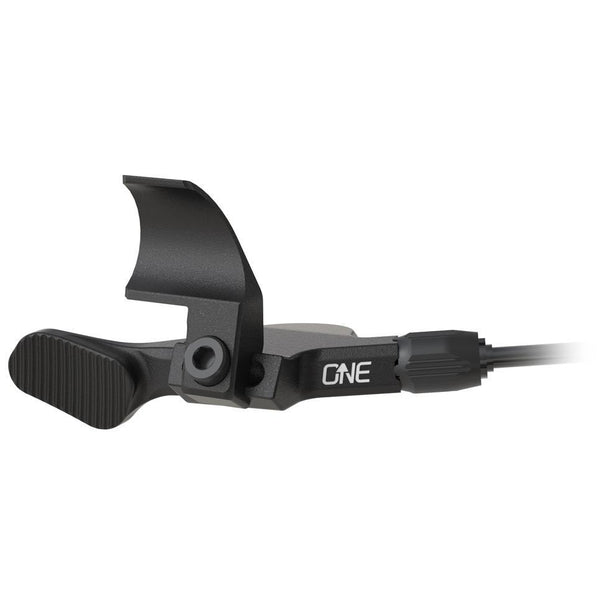

Shimano I-spec II (11speed M9000, M8000, M6000 only)

Remove the lever mounting bolt completely from the left brake using a 4mm hex
Depress the "Push to Open" button using a 2mm hex to fully open the brake lever clamp
Remove the plastic spacer from the inside of the lever clamp
Install the OneUp I-spec II adapter into the lever clamp
Loosely reinstall the brake lever clamp onto the handlebar
Attach the remote body to the I-spec II adapter using your preferred mounting hole.
Torque the remote body to the I-spec II adapter using a 4mm hex to 3Nm
Rotate the OneUp dropper remote until the remote body is parallel to the brake lever.
Torque the brake lever clamp to the manufacturer's recommendation

Shimano I-spec EV (12 speed XTR M9100, XT M8100, SLX M7100 only)

Remove the lever mounting bolt completely from the left brake using a 4mm hex
Depress the "Push to Open" button using a 2mm hex to fully open the brake lever clamp
Install the OneUp supplied T-nut into the curved recess on the hinged clamp
Reinstall the brake lever clamp onto the handlebar
Install the OneUp supplied IS-EV adapter onto the T-nut
Attach the remote body to the IS-EV adapter using your preferred mounting hole.
Torque the remote body to the IS-EV adapter using a 4mm hex to 3Nm
Rotate the OneUp dropper remote until the remote body is parallel to the brake lever.
Torque the IS-EV adapter bolt to the brake clamp using a 4mm hex to 3Nm.

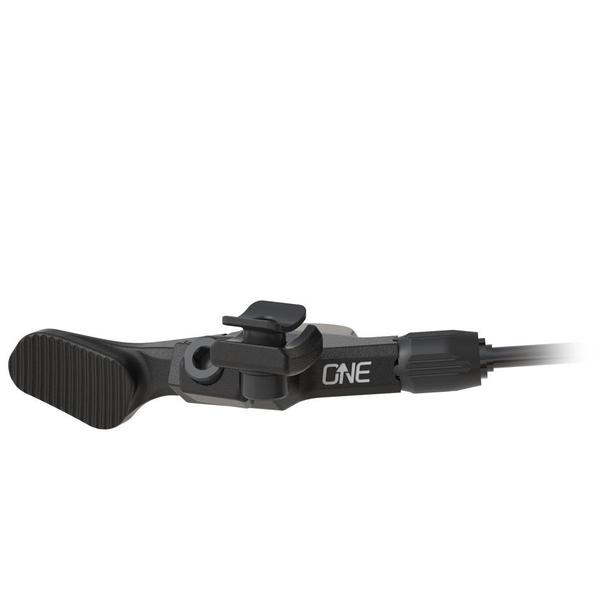

SRAM Matchmaker X

Remove Brake lever mounting screw and hinged clamp using a T25 Torx
Install the OneUp supplied T-nut into the curved recess on the hinged clamp
Reinstall the brake lever clamp onto the handlebar
Install the OneUp supplied Matchmaker X adapter onto the T-nut
Attach the remote body to the Matchmaker X adapter using your preferred mounting hole.
Torque the remote body to the Matchmaker X adapter using a 4mm hex to 3Nm
Rotate the OneUp dropper remote until the remote body is parallel to the brake lever.
Torque the IS-EV adapter bolt to the brake clamp using a 4mm hex to 3Nm.
