Disc specific, tubeless ready, clincher rim, with Vibrocore™, optimized for Gravel, Adventure, and MTB Cross Country use
Vibrocore™ inner well reduces the transmission of harmful vibration frequencies, improving rider comfort and increasing the fatigue life of the rim
Low profile 16.5mm depth, and wide 28mm outer width enhance Radial Compliance, improving traction, while reducing negative feedback to the rider
Asymmetric, 24mm inner width profile improves spoke tension balance between drive side and non-drive side spokes, and optimizes gravel/XC tire spread
Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures
RECOMMENDED FOR: ASTM 3, Gravel, XC
RIDER TYPE: HEAVY TO LIGHT RIDER: Heavy to Medium Impact

HOLE COUNT:	28
SIZES (inches):	650b
WEIGHT +/- (g):	405
INNER WIDTH (mm):	24
OUTER WIDTH (mm):	28
PROFILE HEIGHT (mm):	16.5
ETRTO:	584x24
ERD++ (mm):	564++
TUBELESS:	Tubeless Ready
VALVE:	F/V Presta
TIRE FIT:	35c to 62c or 1.5” to 2.3”
FEATURES:	Radially Compliant Disc Specific Rim with Vibrocore™, Asymmetric Profile, Dynamal Alloy
++: SPANK ERD	= Rim diameter (mm) with 2x spoke bed thickness (mm) included. (++) = add your own nipple head height in mm x2

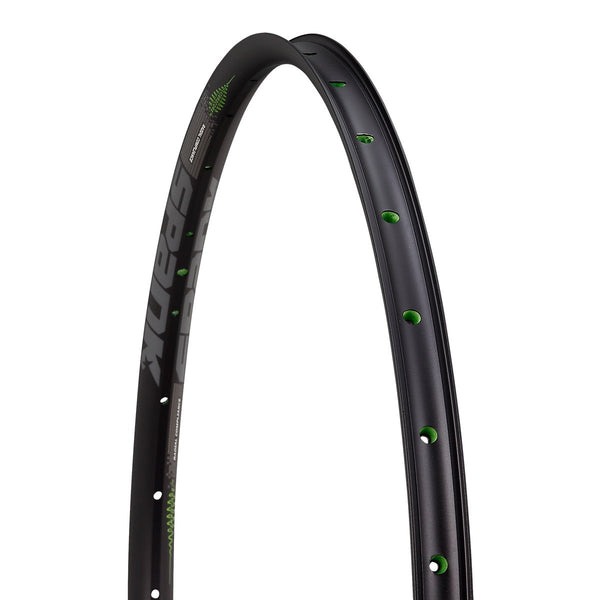

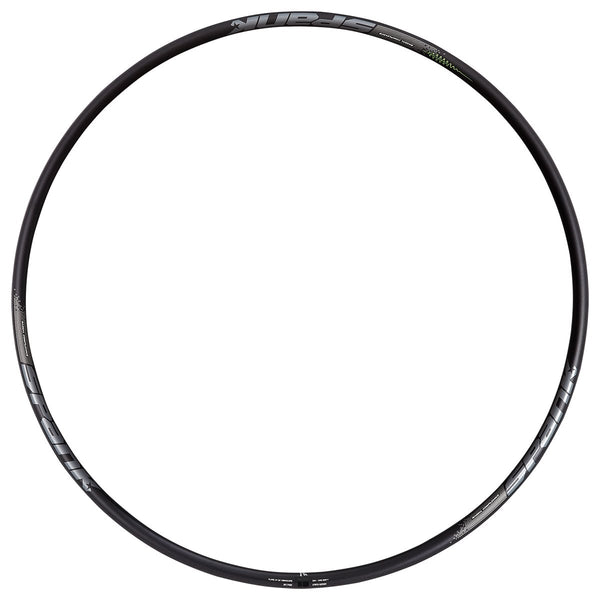

Spank - Flare 24 OC Vibrocore Rim
