Vibrocore™ inner well reduces the transmission of harmful vibration frequencies, improving rider comfort and increasing the fatigue life of the rim
Low profile 16.5mm depth, and wide 28mm outer width enhances Radial Compliance, improving traction, while reducing negative feedback to the rider
Symmetric profile with wide 24mm inner width, optimizes tire spread with modern wide gravel tires, without compromising overall weight
Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures
RECOMMENDED FOR: ASTM 3, Gravel, XC
RIDER TYPE: HEAVY TO LIGHT RIDER: Heavy to Medium Impact

HOLE COUNT:	28
SIZES (inches):	650b
WEIGHT +/- (g):	405
INNER WIDTH (mm):	24
OUTER WIDTH (mm):	28
PROFILE HEIGHT (mm):	16.5
ETRTO:	584x24
ERD++ (mm):	564++
TUBELESS:	Tubeless Ready
VALVE:	F/V Presta
TIRE FIT:	35c to 62c or 1.5” to 2.3”
FEATURES:	Radially Compliant Disc Specific Rim with Vibrocore™, Dynamal Alloy
++: SPANK ERD	= Rim diameter (mm) with 2x spoke bed thickness (mm) included. (++) = add your own nipple head height in mm x2

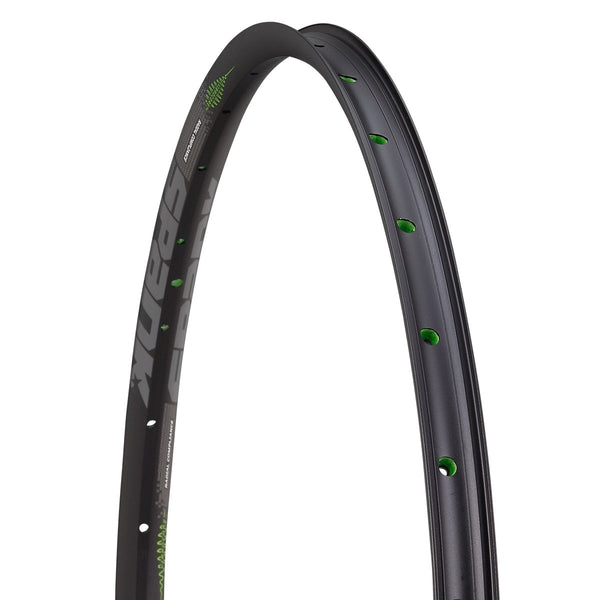

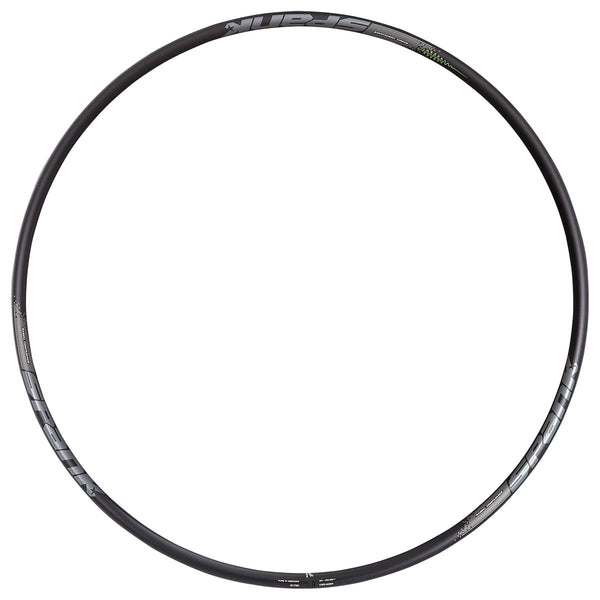

Spank - Flare 24 Vibrocore Rim
