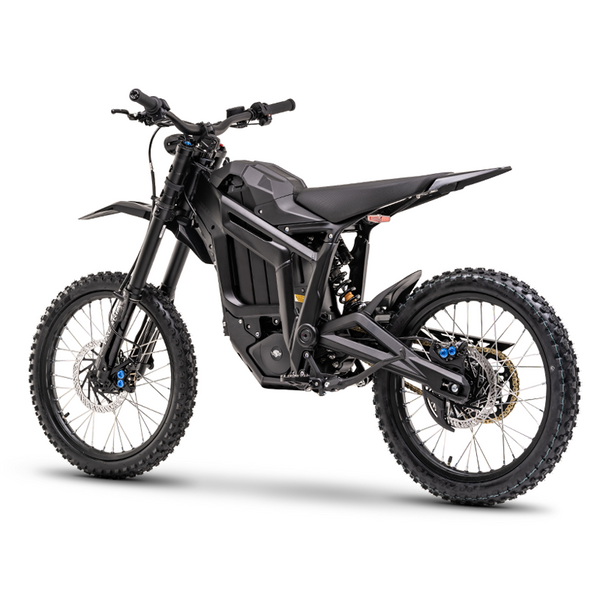

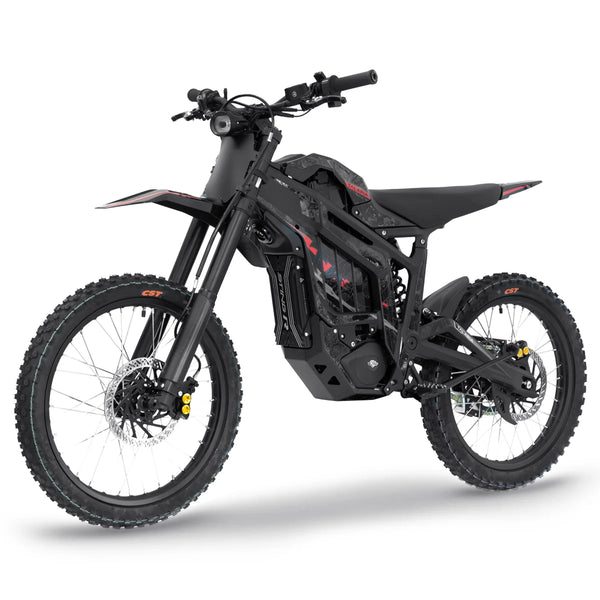

The stunning new Talaria Sting MX5 Pro, Talaria’s newest model, is built to provide the best possible electric off-road performance. With its new 72V/40Ah battery, Talaria’s most potent model to date, the MX5 Pro, stands out from the competition. A 45% boost in power over current 60V Talaria models allows you to feel more torque, accelerate more quickly, and reach higher top speeds.

The Talaria Sting MX5 also boasts powerful moto-spec brakes, three riding modes (including a high-performance “hyper” mode), four levels of regenerative braking, a color TFT display, and much more. The Talaria line’s characteristics include a powerful IPM motor and a clever gearbox that give immediate torque and silent operation.

With amazing high-spec features and a reasonable MSRP, the Talaria Sting MX5 Pro is the answer for riders looking for the pinnacle of electric lightweight off-road performance.

HIGHLIGHTS

Talaria Sting MX5 Pro – UNRIVALED Power & Performance

KEY FEATURES
72V 40Ah battery with Samsung 50S cells (2,880 WH)
Improved braking power (220x3mm disc brakes, larger calipers & DOT redesigned master cylinders)
Adjustable air & double spring suspension tuned for optimal off-road performance (improved over MX4)
3 riding modes including hyper performance mode (unique to the MX5)
CNC machined black footpegs
Colour TFT Display
Straight-pull CNC machined wheel hubs with reinforced spokes
Regenerative braking (including regenerative brake lever)
Headlight switch
Internal reinforced gearbox for quiet, reliable power (no more worn out or snapped belts)

VEHICLE

Specification	Details
Chassis Material	6061 T4 & T6 aluminium alloy
Process Method	Forged under 6,000 tonnes of pressure
Surface Method	Anodizing
Headlight	LED
Front Fork	Adjustable air + dual spring (220mm travel)
Rear Shock	Adjustable 85mm travel with linkage
Wheel Size	1.4×19 in. front / 1.6×19 in. rear
Tires	FR 70/100-19 / RR 80/100-19 off-road tires
Max Range	100 km @ 25 km/h (62 miles @ 15 mph)
Net Weight	76 kg (159 lbs) with battery
Vehicle Dimensions	1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in)
Seat Height	840mm (33.1 in)
Wheelbase	1,250mm (49.2 in)
Handlebar Length	760mm (29.9 in)
Ground Clearance	300mm (11.8 in)
Max Climbing Angle	45°
Max Recommended Load	100 kg (220 lbs)
Brakes	Hydraulic FR/RR improved 4-pistons
Brake Disc	220mm x 3mm

POWER

Specification	Details
Nominal Voltage	72V (DC)
Maximum Speed	Factory limited to 32 km/h (20 mph)
Torque	500N.m (428 48T sprocket)
Rated Power	5.5 kW (Unrestricted)
Peak Power	13.4 kW (Unrestricted)
Power Mode	Eco / Sport / Hyper

ELECTRONIC

Specification	Details
Battery Pack	72V 40AH
Battery Cells	Samsung 50S
Display	TFT – Speed, battery level, voltage, odometer
Regenerative Braking	4-level adjustment + regenerative brake lever

MOTOR

Specification	Details
Motor Type	DC IPM
Mounting Position	Mid-mounted
Motor Cooling	Air-cooled

TRANSMISSION

Specification	Details
Primary Transmission	Gearbox
Drive Transmission	418-108T Chain
Rear Sprocket	48T
